Surface Finishing Machines


Surface Finishing Machines

The SR-DCP Metal Surface Finishing Machines, equipped with a polishing roller, focuses on fine surface finishing and texture treatment of sheet metal, and is widely used in food machinery, elevator industry, and other fields.

METAL SURFACE FINISHING MACHINES CORE COMPONENTS

  • 01

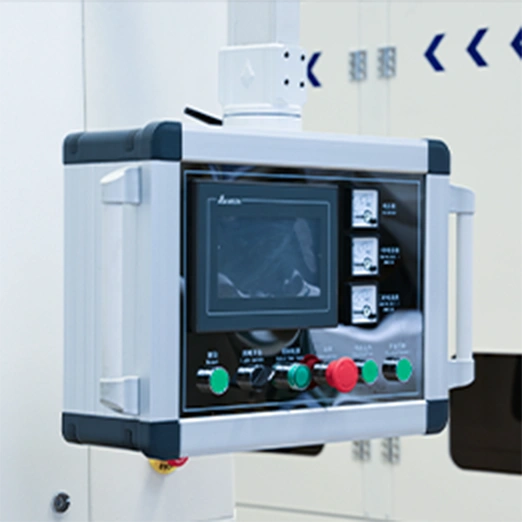

    Intelligent PLC control, High-resolution 10-inch touch screen, easy operation, SR self-programming, integrating all machine functions and safety nodes, remote monitoring of customer equipment status, no national restrictions, high efficient for after-sales service.

  • 02

    Large-diameter rubber rollers ensure more stable machine operation, and the eccentric roller structure effectively extends the service life of the rubber rollers.

  • 03

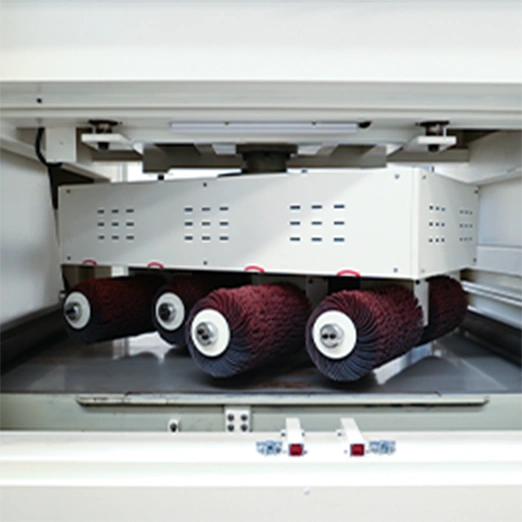

    Stable Rotary Brush structure combined with the high-density roller brush, ensures smooth self-rotation and revolution, perfectly meeting various chamfering requirements.

  • 04

    Made from a high-quality base material and 3M wear-resistant abrasive, equipped with deburring machine, It can quickly remove burrs, flash, and oxide scale from the surface of metal workpieces, while also achieving fine surface polishing, balancing efficiency and precision.

  • 05

    Intelligent PLC control, High-resolution 10-inch touch screen, easy operation, SR self-programming, integrating all machine functions and safety nodes, remote monitoring of customer equipment status, no national restrictions, high efficient for after-sales service.



SURFACE FINISHING MACHINES TECHNICAL SPECIFICATIONS

MEDOL SR-DCP
WORKING WIDTH (MM) 630 800 1000 1300 Options
WORKING THICKNESS(MM) 0.8-80 or Customizable
FIXING TYPE Magnetic/Vacuum
MIN. WORKPIECE SIZE (W × L MM.) Depends on tables, Magnetic: 30*30mm; Vacuum: 80*80mm
CONVEYOR SPEED (M/MIN.) 1 - 7(frequency adjustable )
ABRASIVE BELT DIMENSIONS (L × W MM.) 650*1900 820*1900 1020*2200 1320*2200
MAX. LOAD CAPACITY (KG.) 200 300 500 700
WORKING CONDITIONS 220V/380V/400V/415V/440V
APPLICABLE MATERIALS Steel/Stainless Steel/Aluminium/Copper/Titanium and other materias

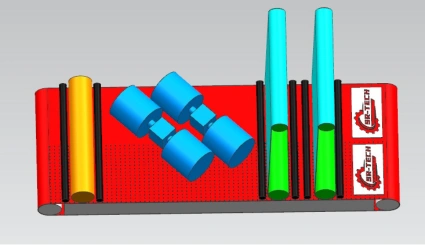

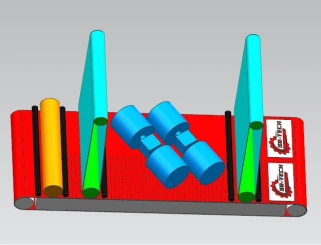

Surface Finishing Machines - OPTIONAL

optional-2
optional-2

2222222

optional-1
optional-1

2222222222222


33333


333333333333333333

applications-8
applications-8

about-1
about-1

WHAT CAN SR-DCP METAL SURFACE FINISHING MACHINES DO?

  • Metal Surface Finishing Machine is widely used in the following industries, such as Sheet Metal Processing; Heavy Machinery; Auto Parts; Aerospace; Communications Electronics; Rail Transit; New Energy; Precision Machining; Kitchen Cabinet Tableware; Medical Equipment etc.

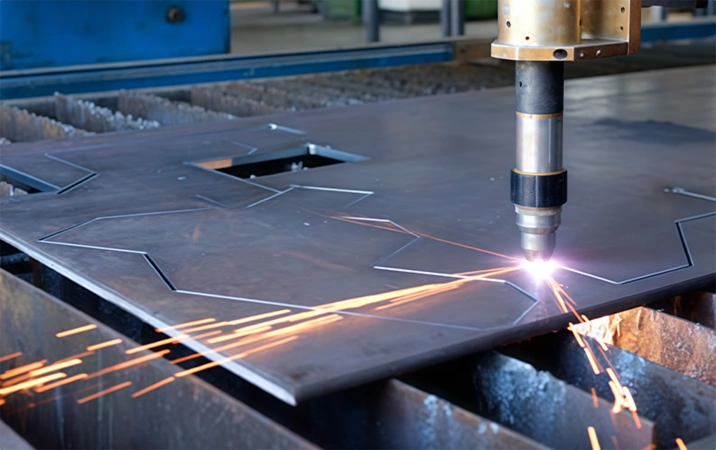

  • It can well achieve the following functions, such as Burr Removal; Surface Polishing; Round Edge Chamfering & Blunting; Precision Grinding; Slag & Oxide Skin Removal; Wire Drawing etc. for Laser Cutting; Water Jet Cutting; Plasma Arc Cutting; Shearing; Stamping etc.



SAMPLE DISPLAY

sample-1
